Tungsten carbide rods are most for metal working, milling/turning/drilling/boring.
All of our tungsten Carbide Products are made from 100% Virgin Raw Materials and Sinter-HIP, with very good quality and excellent performance.
Our main material grades on tungsten carbide rods:
Grade | Cobalt | Grain size | Hardness | Density | Bending strength | Impact strength |
YS10 | 10% | 0.8um | 91.8HRA | 14.35g/cm3 | 4100N/mm2 | 0.45kgf/cm2 |
YS12 | 12% | 0.6um | 92.3HRA | 14.18g/cm3 | 4400N/mm2 | 0.4kgf/cm2 |
YS500 | 12% | 0.45um | 92.6HRA | 14.03g/cm3 | 4100N/mm2 | 0.4kgf/cm2 |
YS20 | 10% | 0.8~1.0um | 91.5HRA | 14.41g/cm3 | 4300N/mm2 | 0.5kgf/cm2 |

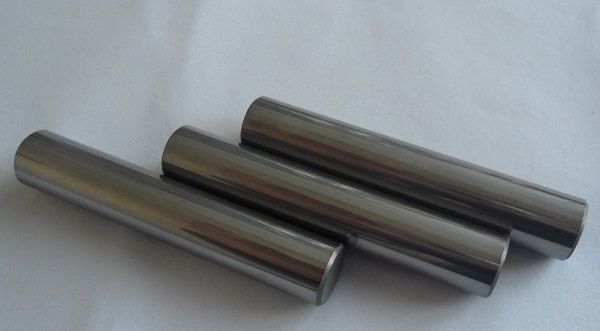

h6 Tungsten carbide solid rods

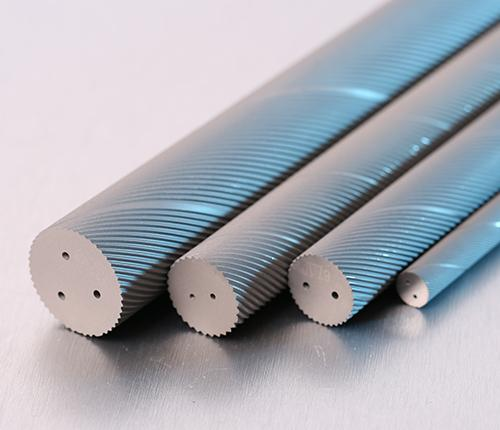

Carbide 2 helix rods

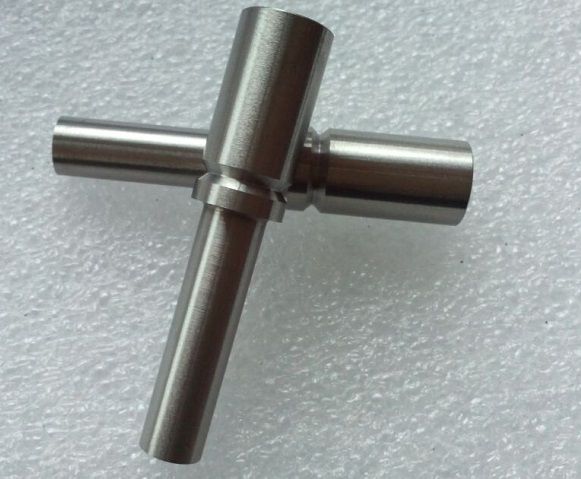

Customs-made carbide rods
Carbide rods with chafmer

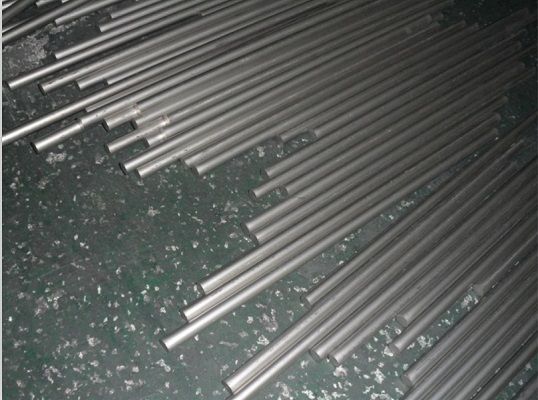

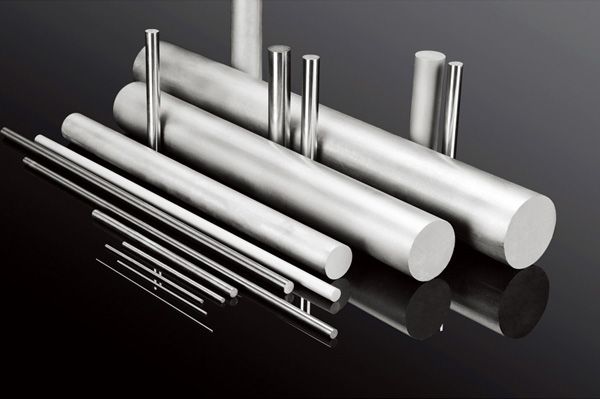

Durable cemented carbide round bar
